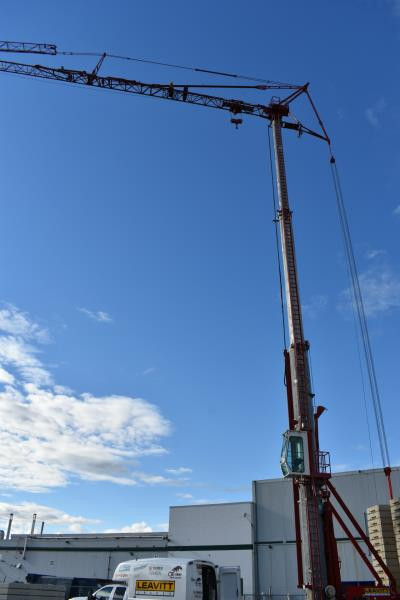

Used Self Erect Cranes Rialto - The tower crane's base is typically bolted to a large concrete pad which provides very necessary support. The base is connected to a tower or a mast and stabilizes the crane that is attached to the inside of the building's structure. Normally, this attachment point is to a concrete lift or to an elevator shaft.

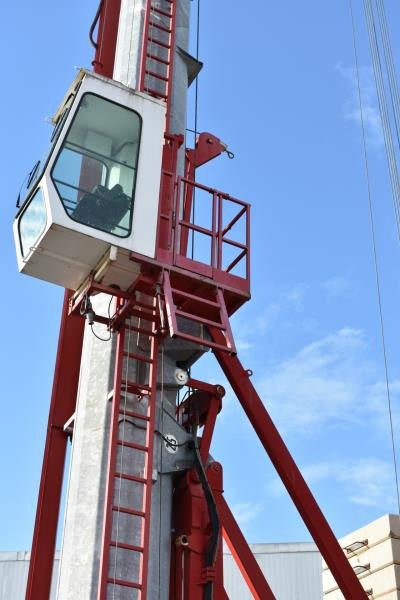

The crane's mast is normally a triangulated lattice structure that measures 10 feet square or 0.9m2. Connected to the very top of the mast is the slewing unit. The slewing unit consists of a motor and a gear which enable the crane to rotate.
Tower cranes are able to have a maximum unsupported height of 80m or 265 feet. The maximum lifting capacity of a tower crane is 16,642 kilograms or thirty nine thousand six hundred ninety lbs. with counter weights of twenty tons. Furthermore, two limit switches are utilized to be able to make sure that the driver does not overload the crane. There is even another safety feature referred to as a load moment switch to ensure that the driver does not surpass the ton meter load rating. Last of all, the tower crane has a maximum reach of 70 meters or two hundred thirty feet.
There is definitely a science involved with erecting a tower crane, specially due to their extreme heights. First, the stationary structure needs to be transported to the construction site by using a big tractor-trailer rig setup. Next, a mobile crane is used in order to assemble the machinery portion of the crane and the jib. After that, these parts are connected to the mast. The mobile crane then adds counterweights. Forklifts and crawler cranes can be a few of the other industrial machines which is used to erect a crane.
Mast extensions are added to the crane as the building is erected. This is how the height of the crane could match the building's height. The crane crew uses what is called a top climber or a climbing frame which fits between the top of the mast and the slewing unit. A weight is hung on the jib by the work crew in order to balance the counterweight. Once complete, the slewing unit can detach from the top of the mast. In the top climber, hydraulic rams are utilized to adjust the slewing unit up an additional 20 feet or 6.1m. Next, the crane driver uses the crane to insert and bolt into position one more mast part piece.
